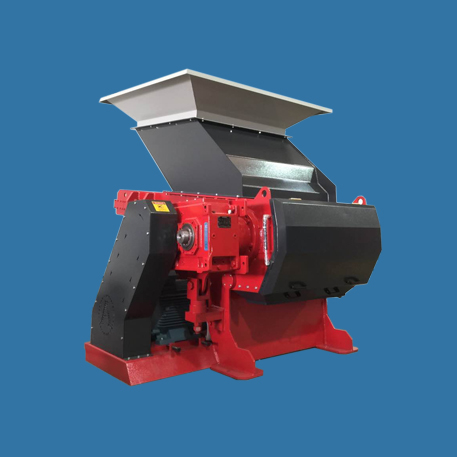

Single Shaft Shredder

It is made of special materials and is balanced dynamically and statically. It has the characteristics of good toughness, hard deformation in work, stable working state, etc. The rotary knife adopts the "V" type installation mode, which makes the rotary knife cut evenly, reduce energy consumption and noise during the whole work. It is very convenient to load and unload the blade.

电话: 630.687.9876

邮箱: sales@avianusa.com


SINGLE SHAFT SHREDDER DATA

Model	Motor (HP)	Hopper opening	Hopper Volume	Rotor diameter	Rotor Knives	Screen Size	Hydraul ic(HP)	Machine Size(L x W x H)	Rotor speed	Machine weight (lbs)
ASG600	20/25/ 30HP	600x1000(mm) 24”x40”	27ft3	Φ400mm Φ16”	32	Φ20-80mm Φ1/2-Φ31/2	2HP	2015x1630x2150(mm) 80”x64”x84”	70-120rpm	5200 lbs
ASG800	30/40/ 50HP	850x1250(mm) 33”x49”	54-81 ft3	Φ400mm Φ16”	42	Φ20-80mm Φ1/2-Φ31/2	2HP	2310x1860x2365(mm) 90”x73”x93”	70-120rpm	6000 lbs
ASG1000	50/60/ 75HP	1100x1250(mm) 43”x50”	81-108 ft3	Φ400mm Φ16”	54	Φ20-80mm Φ1/2-Φ31/2	2-5HP	2310x2100x2365(mm) 91”x83”x93”	70-120rpm	7000 lbs
ASG1200	60/70/ 90HP	1200x1250(mm) 64”x59”	81-135 ft3	Φ400mm Φ16”	74	Φ20-80mm Φ1/2-Φ31/2	5HP	2310x2210x2365(mm) 91”x87”x93”	70-120rpm	8000 lbs
ASG1500	75/90/ 110HP	1609x1500(mm) 64”x59”	81-162 ft3	Φ500mm Φ20”	84	Φ20-80mm Φ1/2-Φ31/2	5HP	2800x2630x3080(mm) 110”x103”x121”	70-120rpm	11000 lbs
ASG2000	110/ 130/ 150HP	2135x1500(mm) 84”x59”	135 ft3	Φ500mm Φ20”	104	Φ20-80mm Φ1/2-Φ31/2	5HP	3730x3160x3600(mm) 147”x125”x142”	70-120rpm	12000 lbs

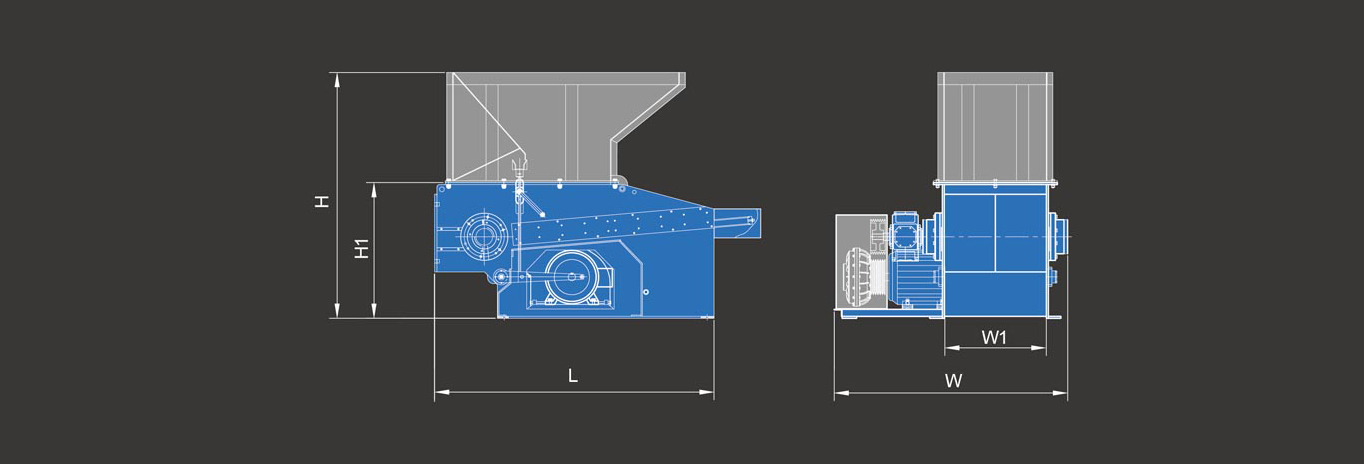

Model	L(inch)	W(inch)	H(inch)	H1(inch)	W1(inch)	L1(inch)
ASG600	2015/79.3	1630/64.2	2150/84.6	1255/49.4	606/23.9	1000/39.4
ASG800	2310/90.9	1860/73.2	2365/93.1	1255/49.4	840/33.1	1250/49.2
ASG1000	2310/90.9	2100/82.7	2365/93.1	1255/49.4	1075/42.3	1250/49.2
ASG1200	2310/90.9	2210/87.0	2365/93.1	1255/49.4	1192/46.9	1250/49.2
ASG1500	2800/110.2	2630/103.5	3080/121.3	1500/59.1	1609/63.3	1500/59.1
ASG2000	3730/146.9	3160/124.4	3600/141.7	1500/59.1	2135/84.1	1500/59.1
